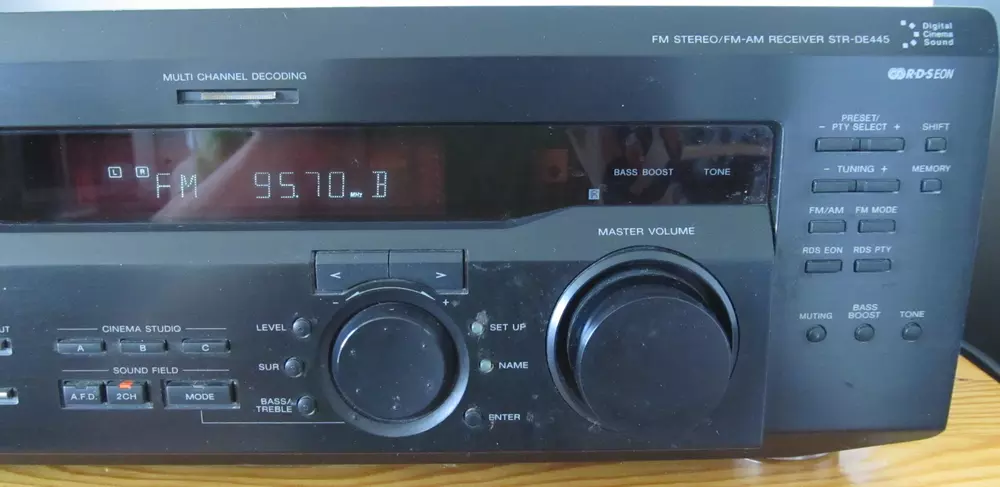

Sony STR-DE445

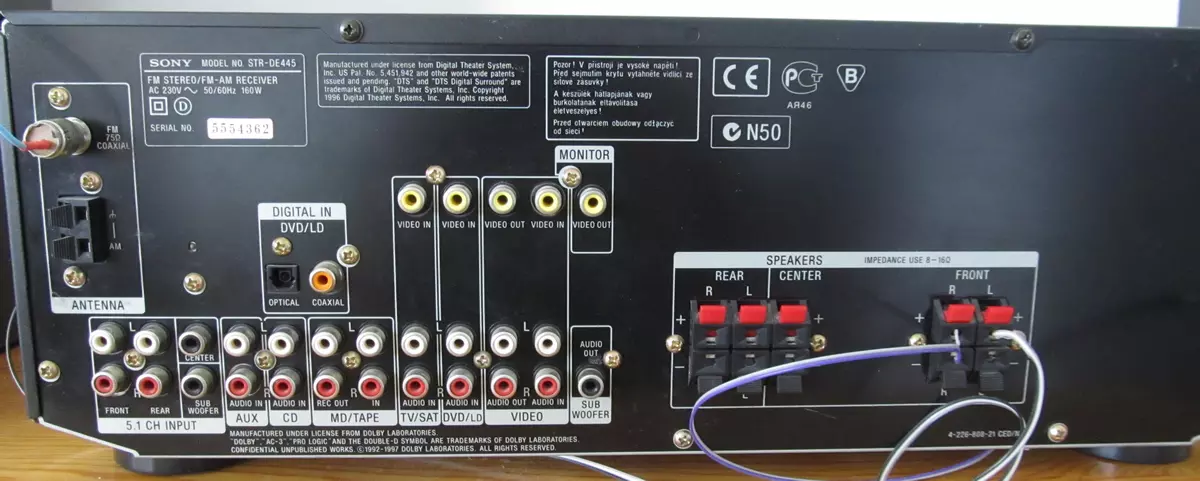

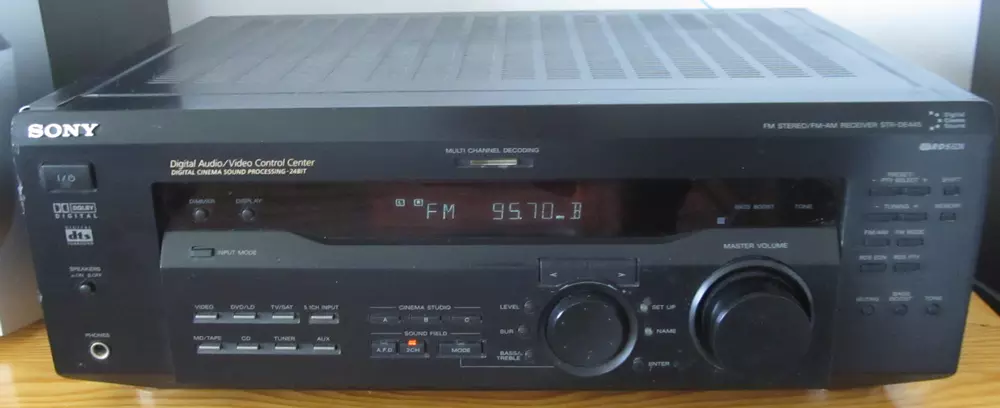

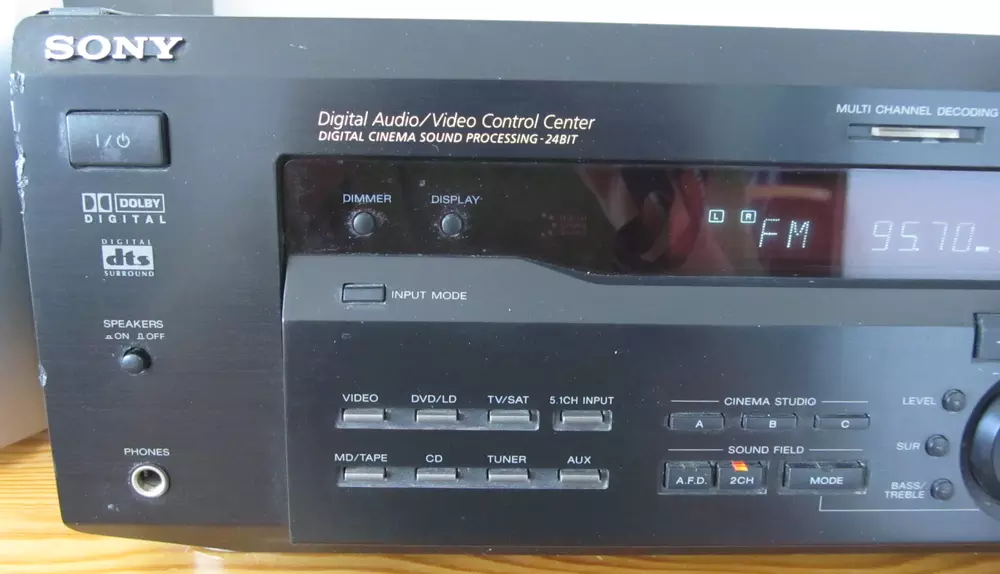

Sony 5.0 amplituner from 2000 or 2001. Quick specifications:
- 5 x 60W at 1kHz, 8Ohms, 0.7% THD; I'm guessing this is peak/music power, not RMS as total power consumption is specified as 160W
- 10 Hz - 50 kHz + 0.5/–2 dB (with sound field, tone, and bass boost bypassed)
- S/N for analog inputs: 96 dB (A, 250mV)
- S/N for digital inputs: 100 dB
- FM sensitivity, mono: 18.3 dBf, 2.2 µV/75 ohms, stereo: 38.3 dBf, 22.5µV/75 ohms
Initial issues:
- almost no FM radio reception - tuning occasionally to one or two strongest stations, but with mains hum stronger than actual useful signal; audio from Line IN sounds file
- operating erratically - some buttons not registered or registered as completely different function
- minor mechanical damage that I probably won't be able to fix without a donor

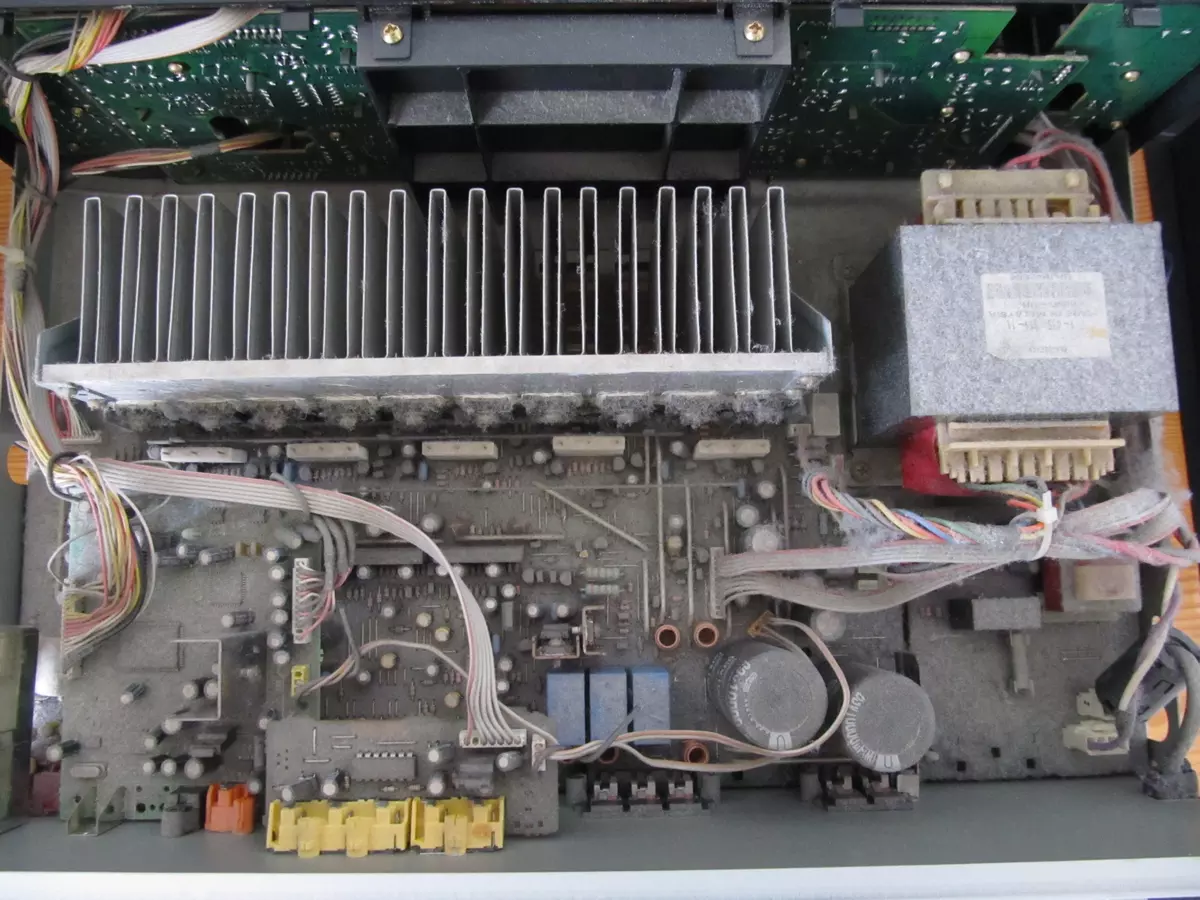

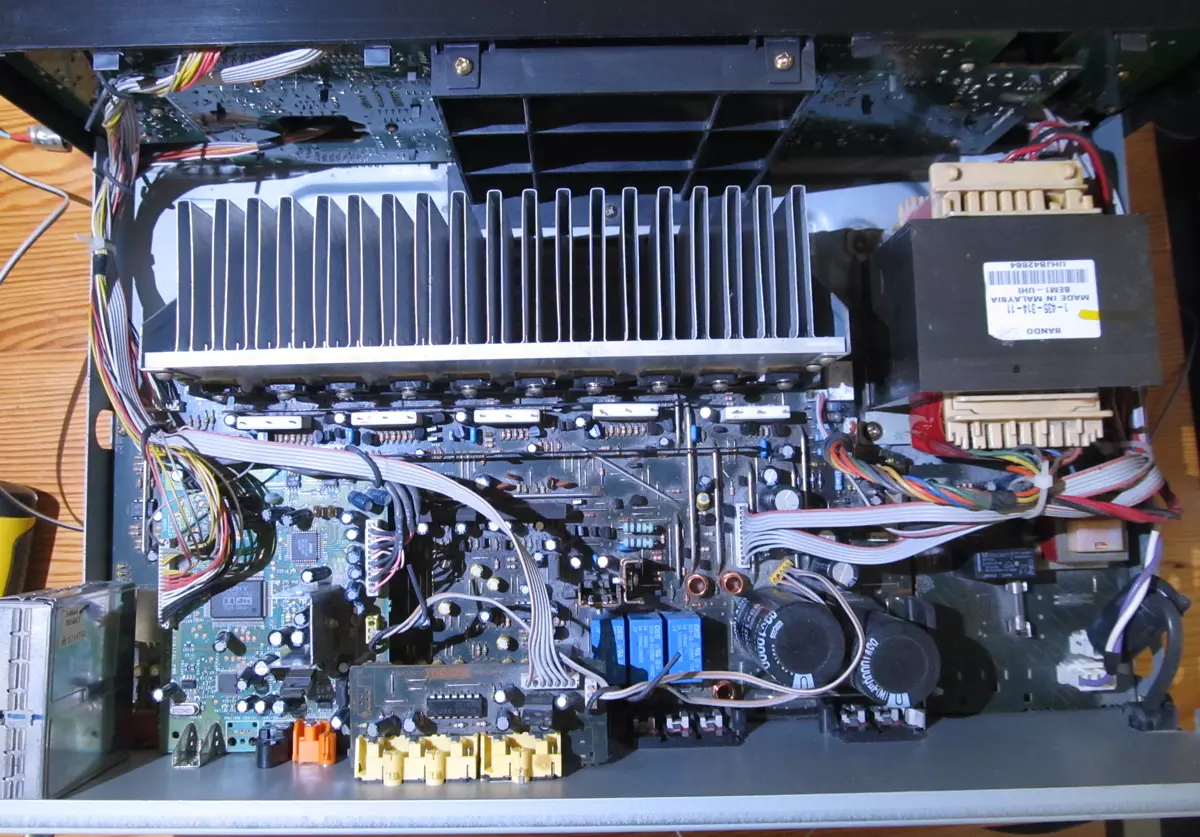

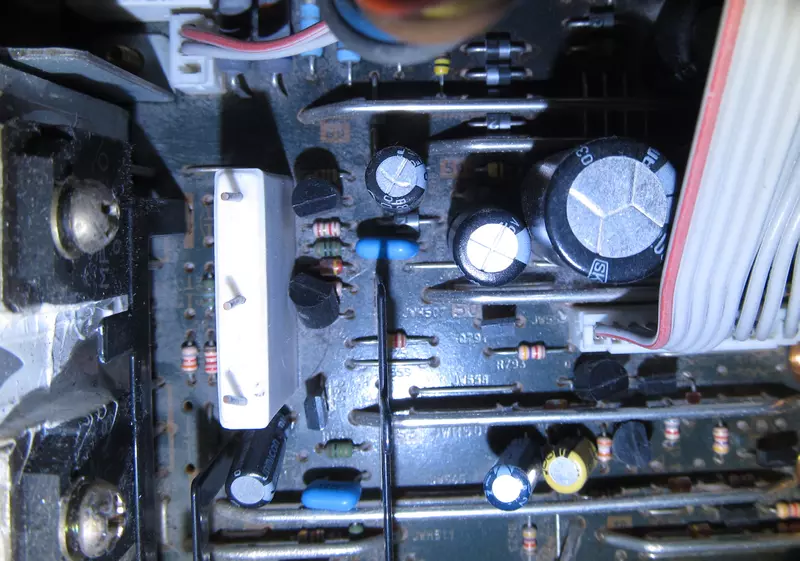

Lots of dust inside.

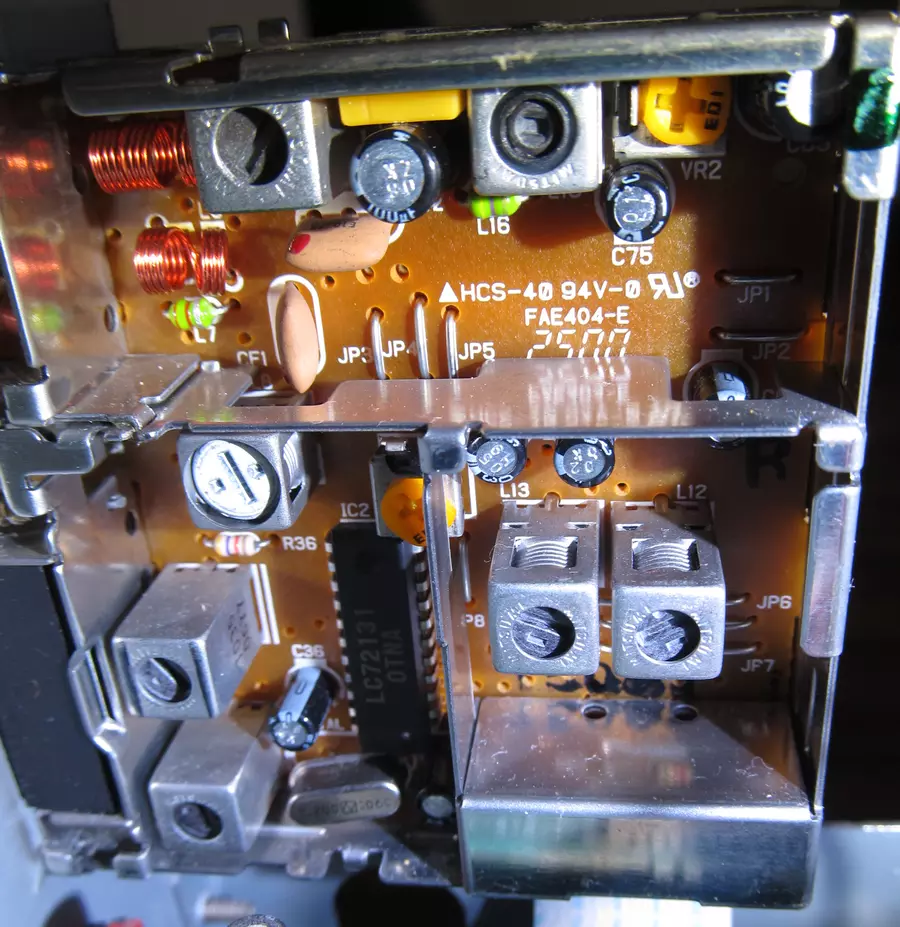

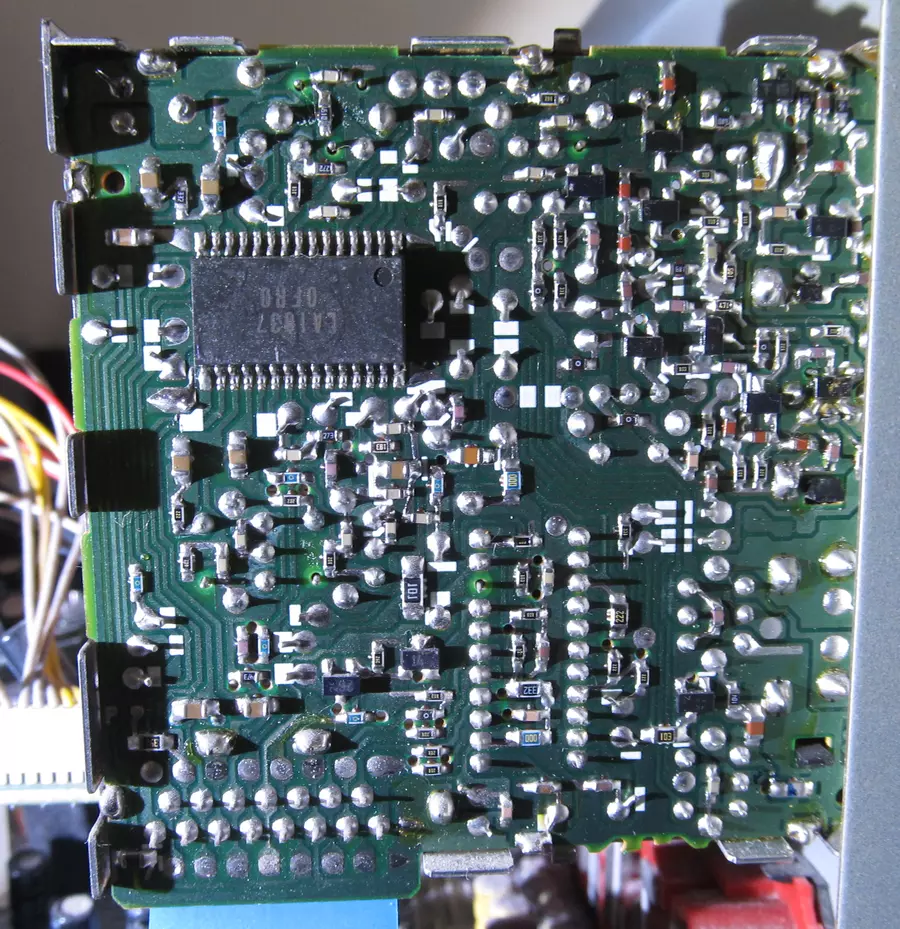

MITSUMI tuner, 340844 / 0818MY. LA1837 + LC72131. Controlled by digital serial interface, outputting already decoded L/R audio signal.
These PCB colors are awful - hard to read if there is any dust.

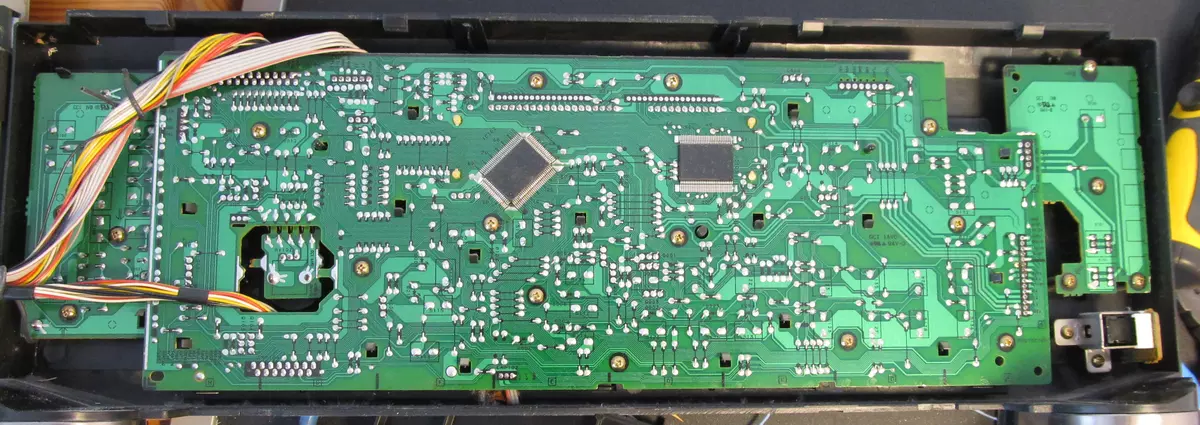

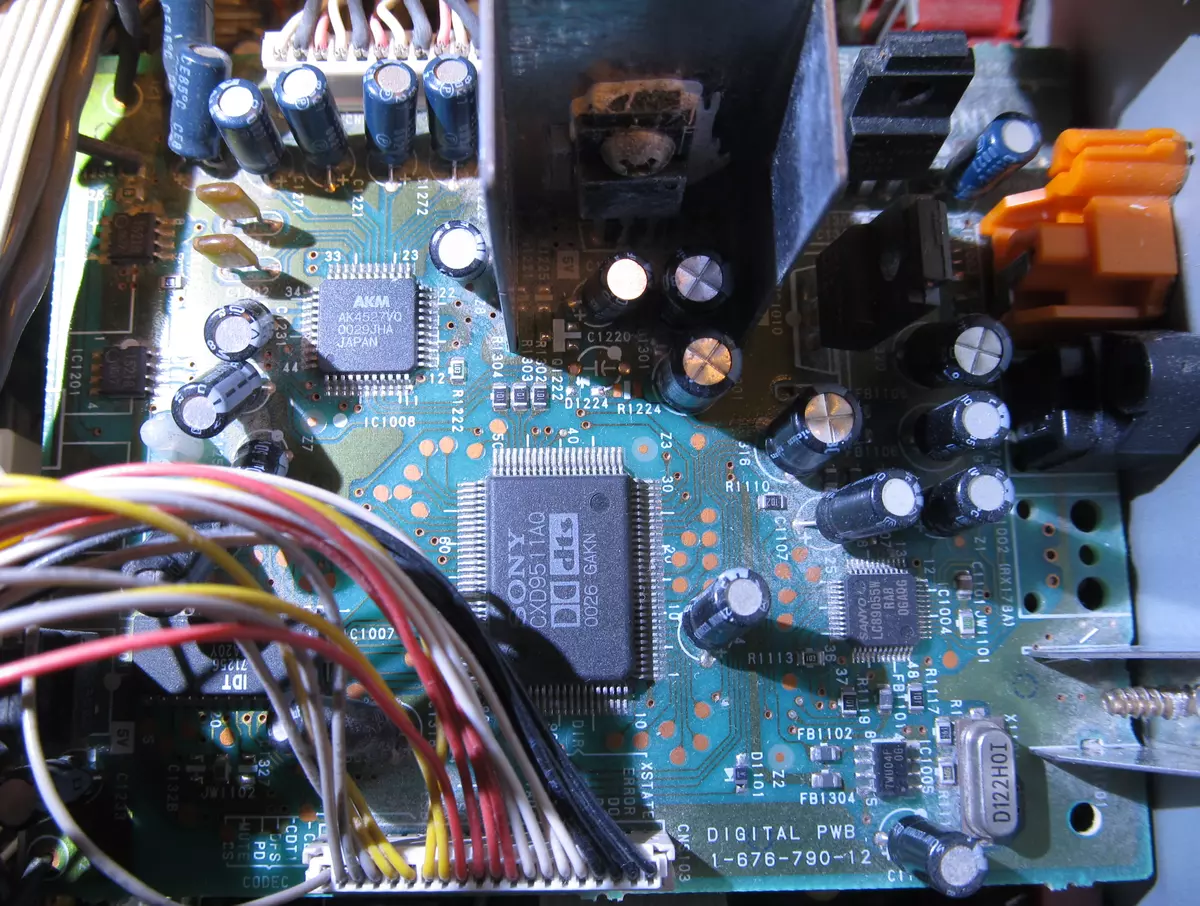

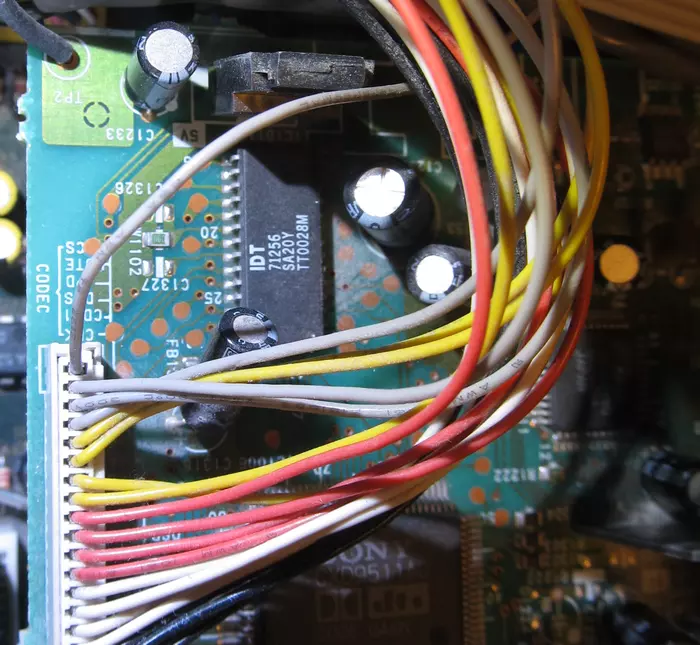

Digital input board. AK4527VQ codec, CXD9511AQ DTS decoder, LC89055W digital audio receiver, IDT71256 SRAM.

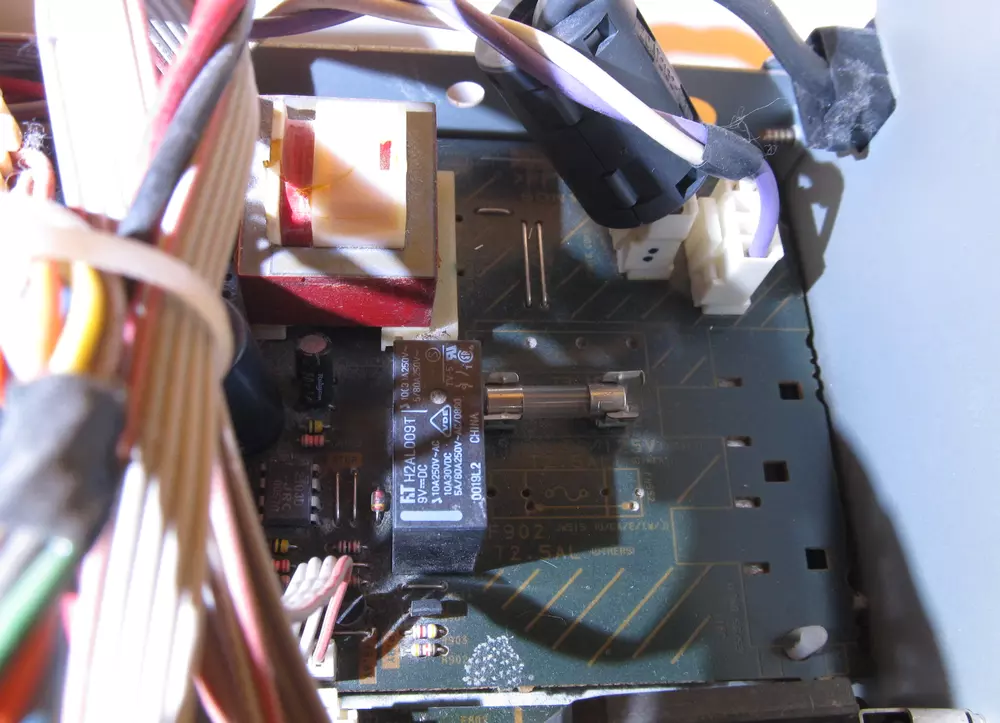

Standby power supply.

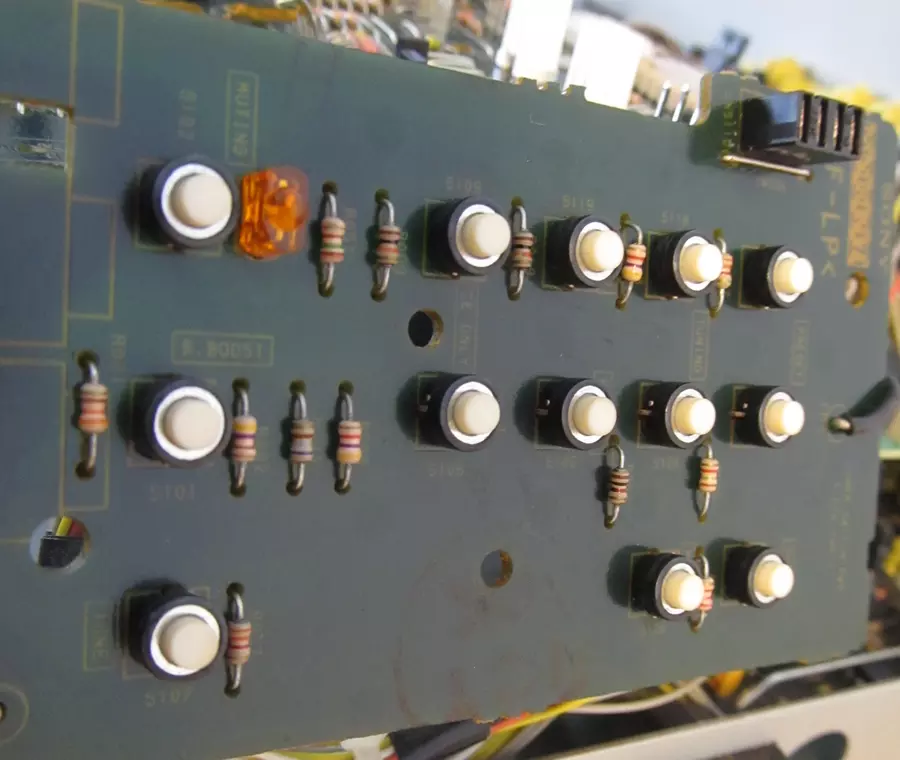

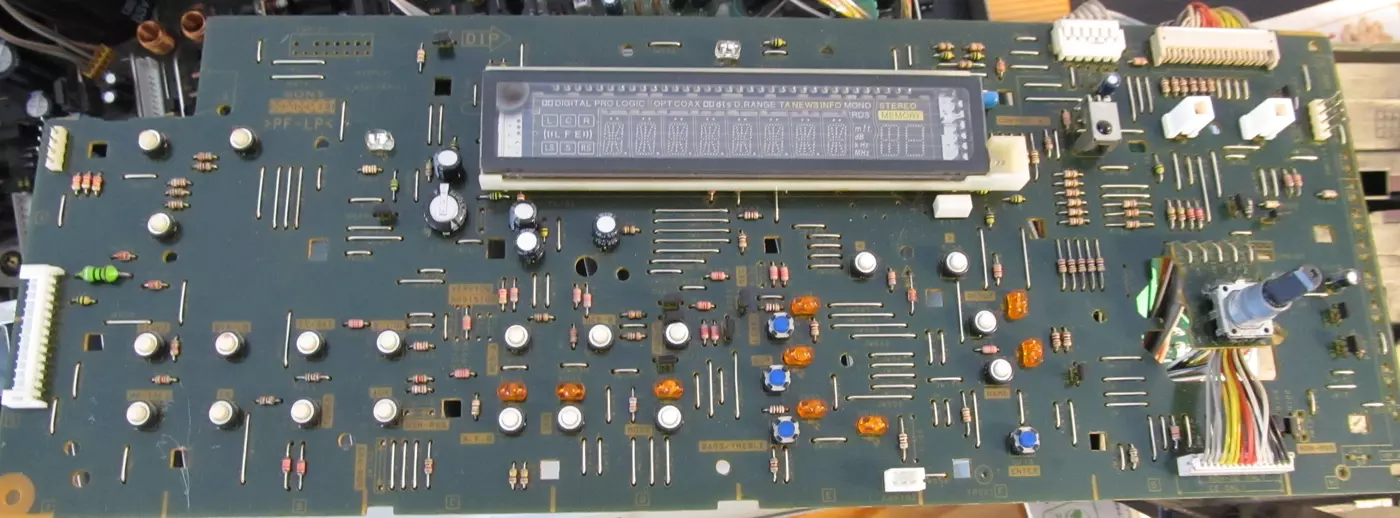

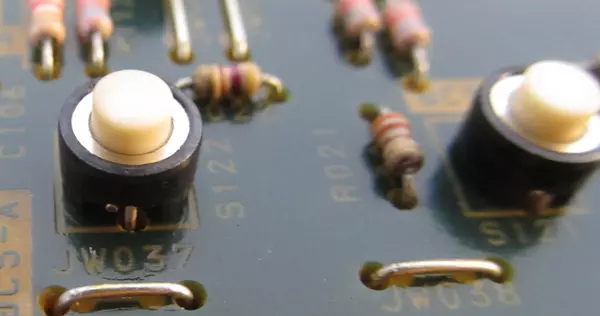

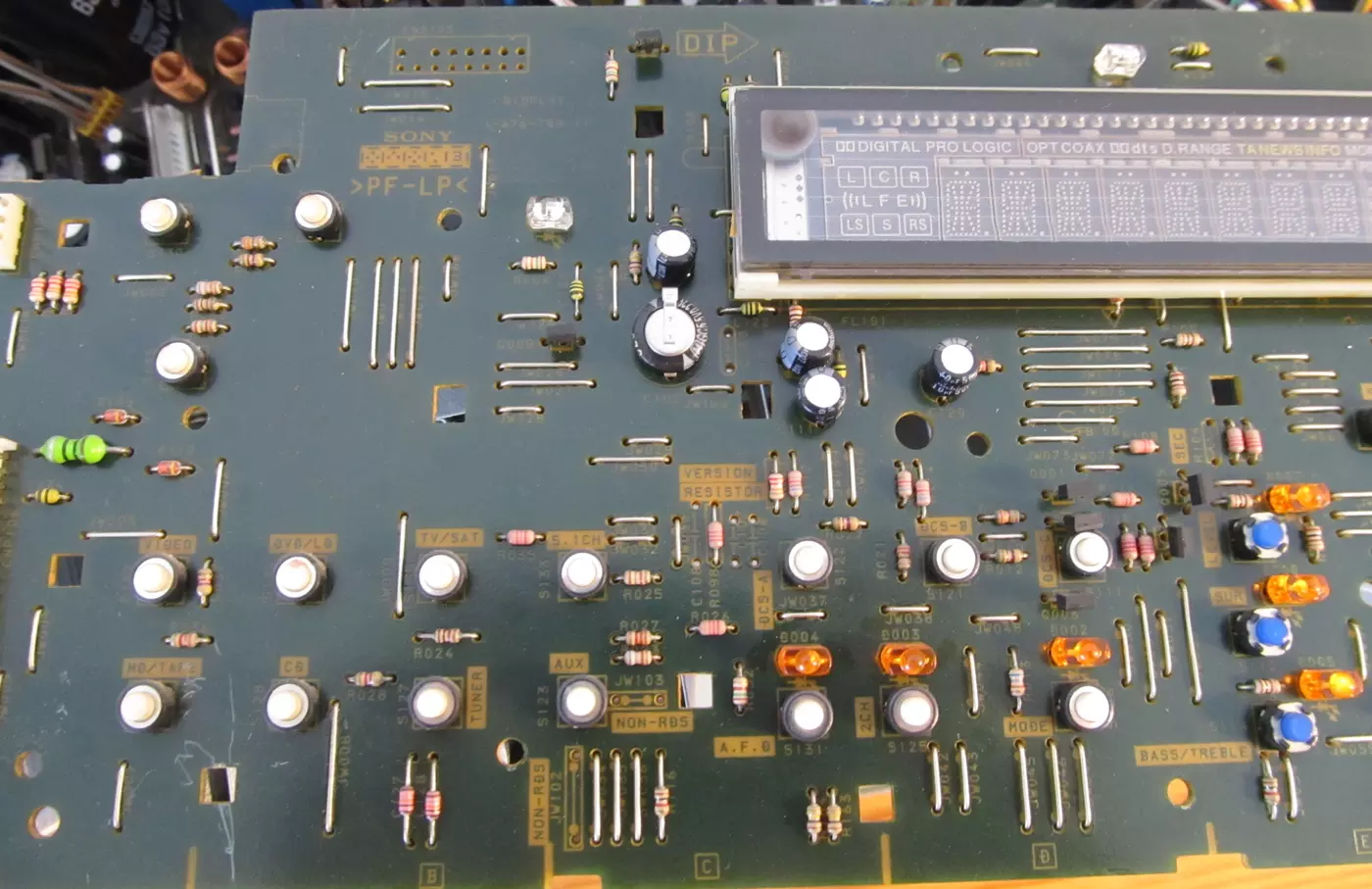

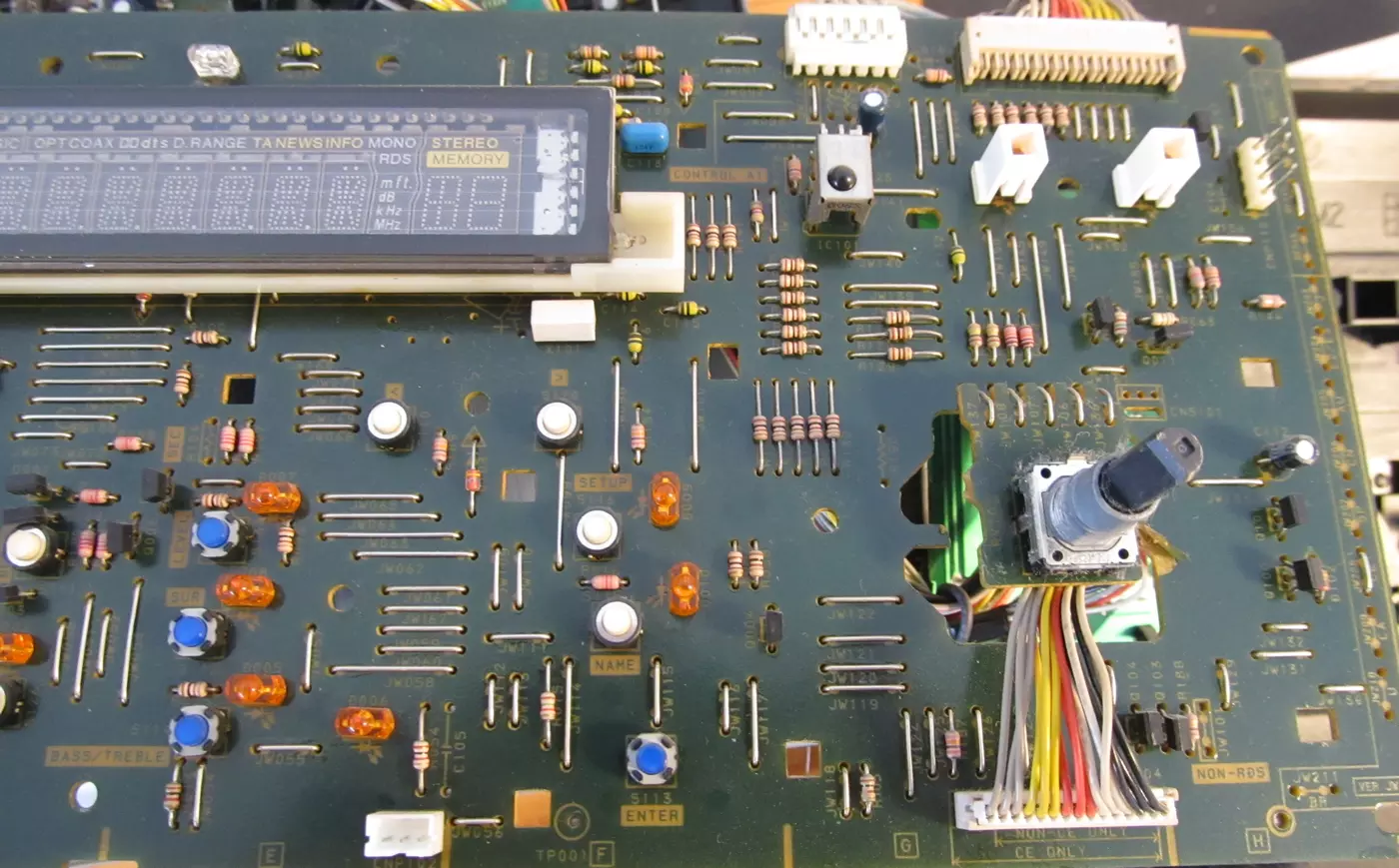

These semi-white switches are awful. Every one has either high/unstable resistance when turned on, sometimes zero reaction.
I've tried to put some alcohol on them and I've also soaked three of them after desoldering for a few hours. All of them (35 or so) would need to be replaced.
The blue ones (4 of them) are fine.
New tact switches from aliexpress. Higher activation force than original, but I guess they'll do. I could buy round switches similar to original, but seeing so many faulty ones I do not trust them.
Minor issue: broken pad and cracked solder on one of the encoders.
Old switches.
The cause of not working tuner: inadequate tuner supply voltage, caused by completely dried C899 (100u/35V Elna).

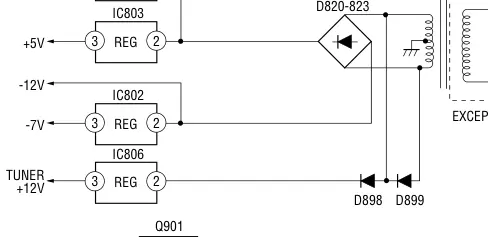

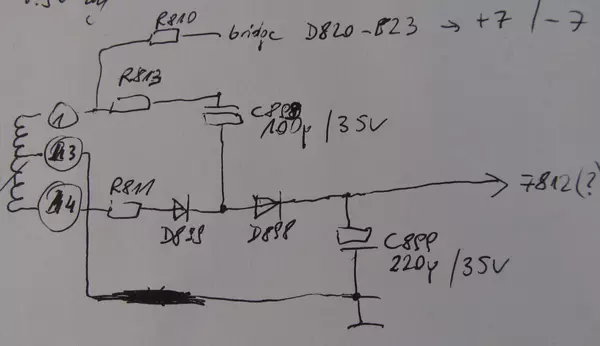

Service manual for this model is easy to find, though some parts like block diagram are confusing (transformer shorted by D899 diode below):

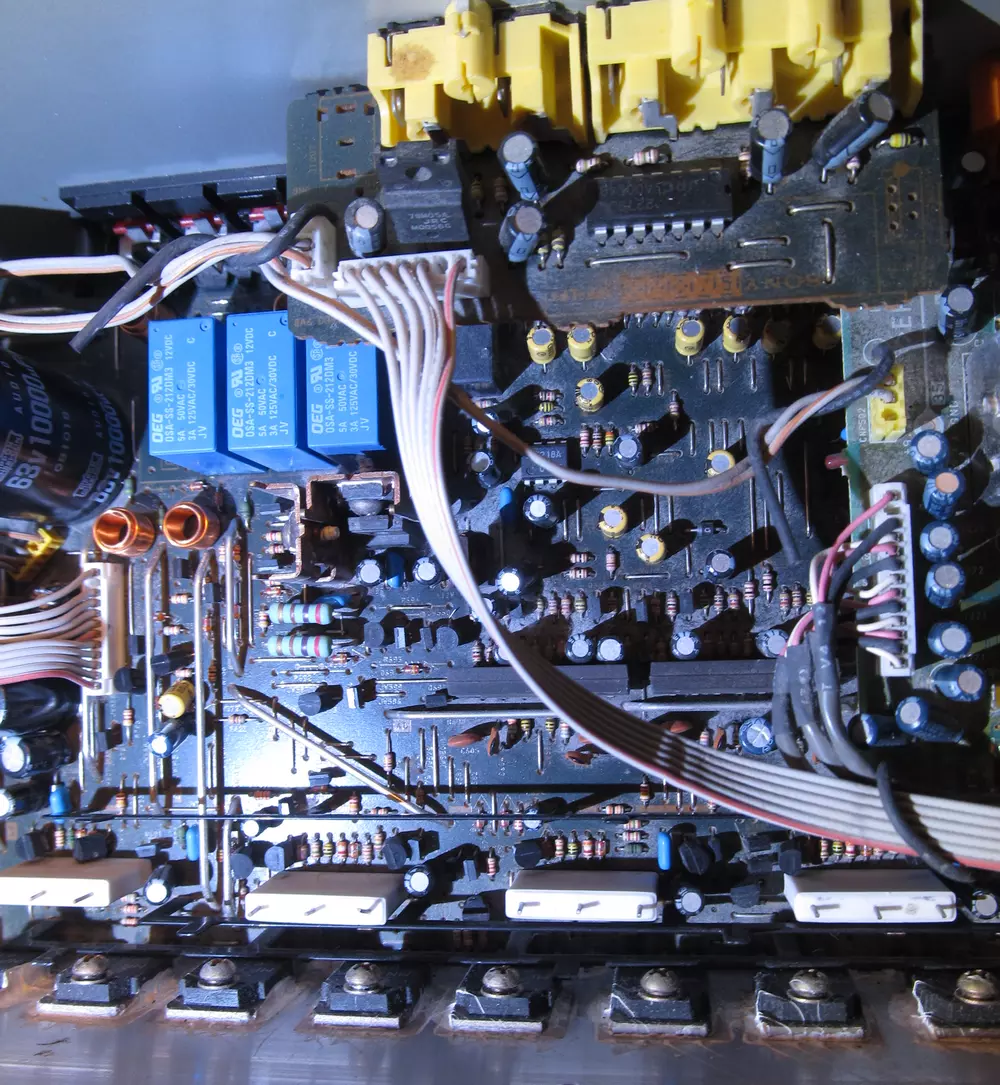

Replaced capacitors, most of them completely lost capacitance:
- C899 100u/35V ELNA
- C603 100u/10V Jamicon
- C753 100u/10V Jamicon
- C653 100u/10V Jamicon
- C703 100u/10V Jamicon
- C808 100u/10V Jamicon (just high ESR)
- C896 47u/16V Jamicon (just high ESR)
AUX input sensitivity seemed low, but it looks like it was also fixed after replacing capacitors.
Assembled after the repair, RDS and stereo reception working.
