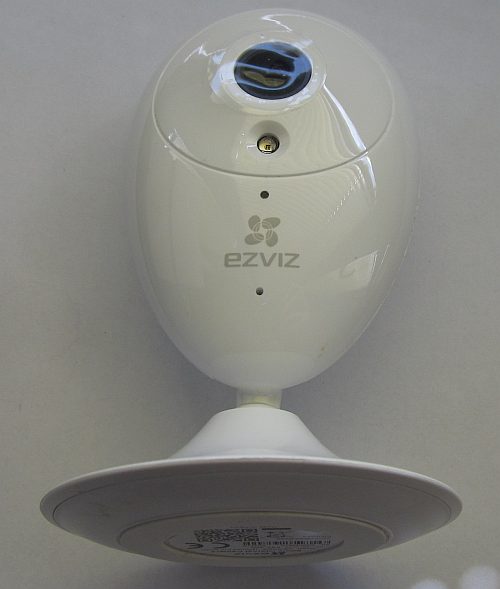

Ezviz CS-CV206 camera

Small indoor network camera. Features:

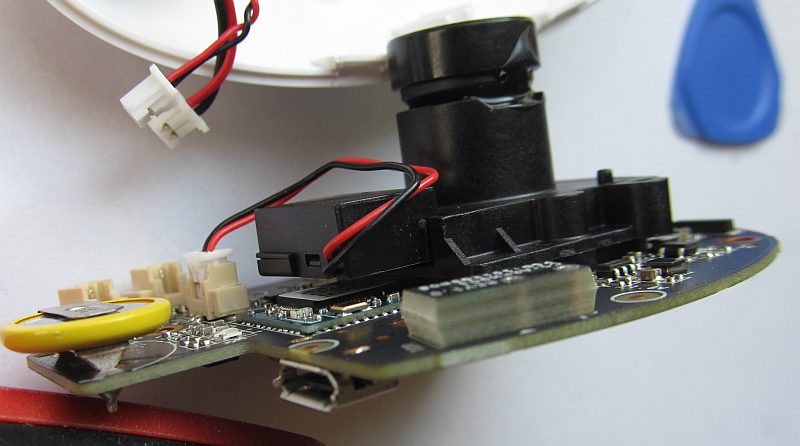

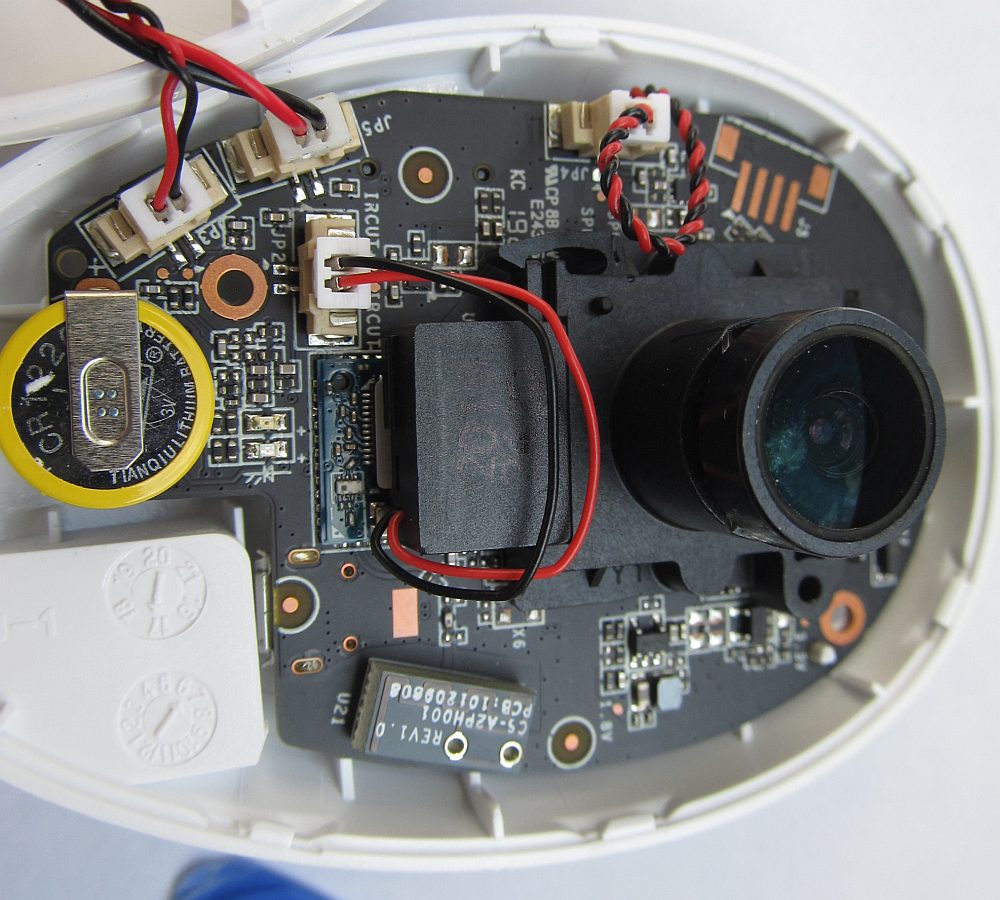

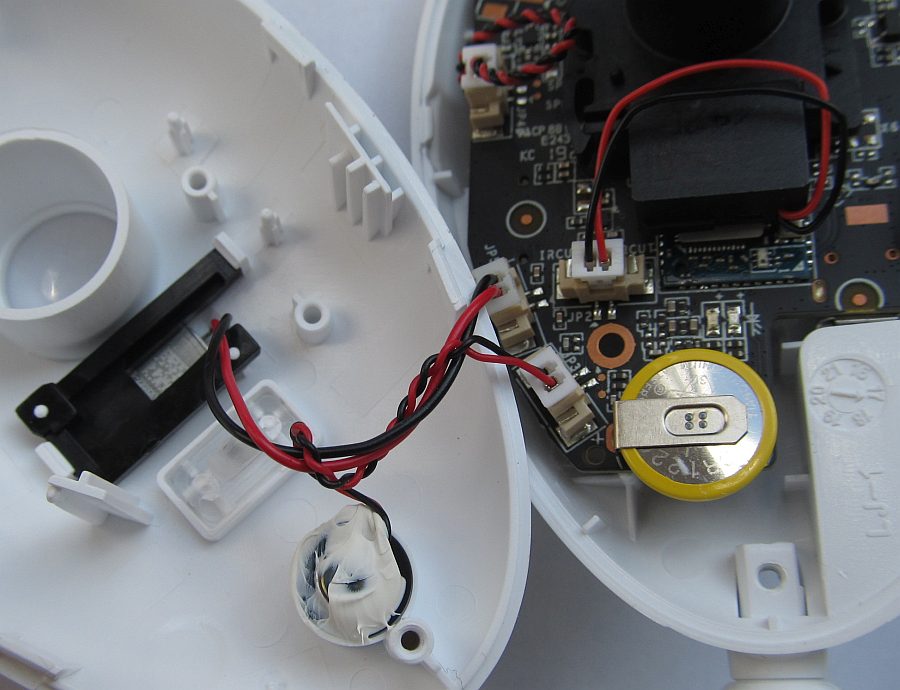

There is soldered CR1220 cell on the PCB, probably for the RTC. In my case it was already discharged. There might be a space to solder slightly larger cell.

OpenIPC ezviz page shows that there are multiple different devices under the same name, hard to distinguish without opening.

Ezviz CS-CV206 camera

Ezviz CS-CV206 camera

Ezviz CS-CV206 camera

Ezviz CS-CV206 camera

Inluded in the box: nicely looking 5V/1A AC adapter with USB-A socket, model ED2-050100UE by Mass Power Electronic Limited, generous 3 m USB-A to micro USB cable, some double-sided tape (rings) for mounting, steel ring with holes that can be mounted with screws. There are quite strong magnets in the base of this camera and it sticks nicely to desktop PC case or included steel ring.

Ezviz CS-CV206 camera

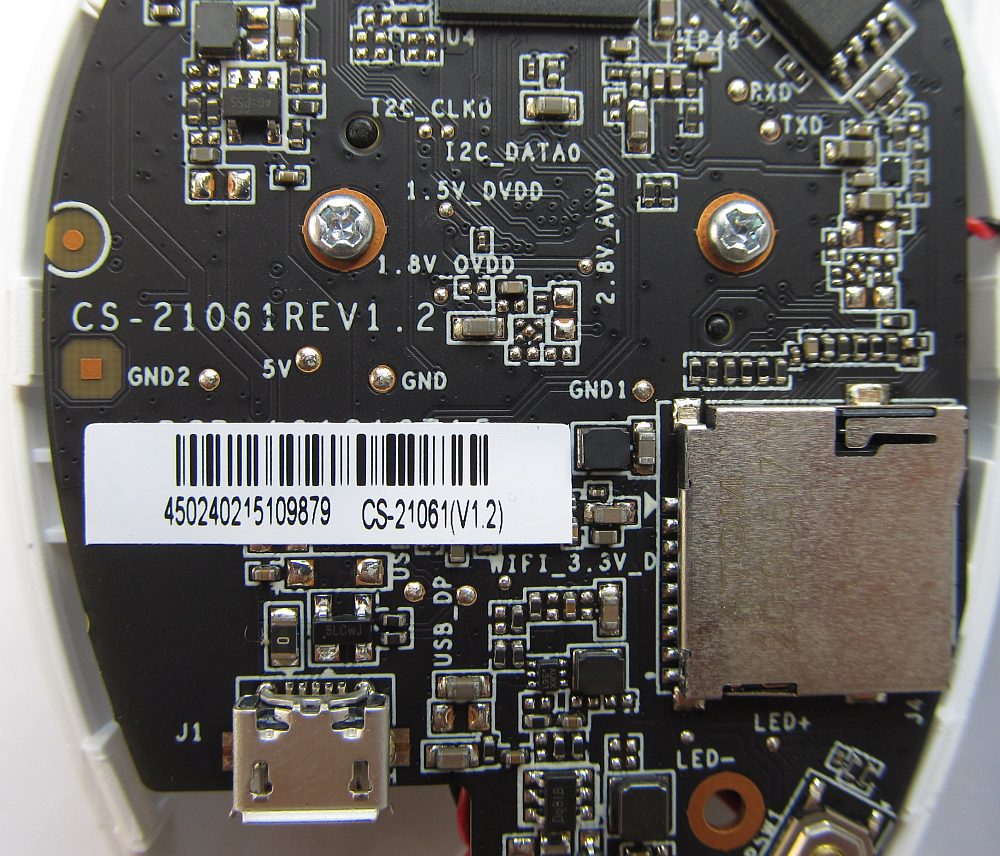

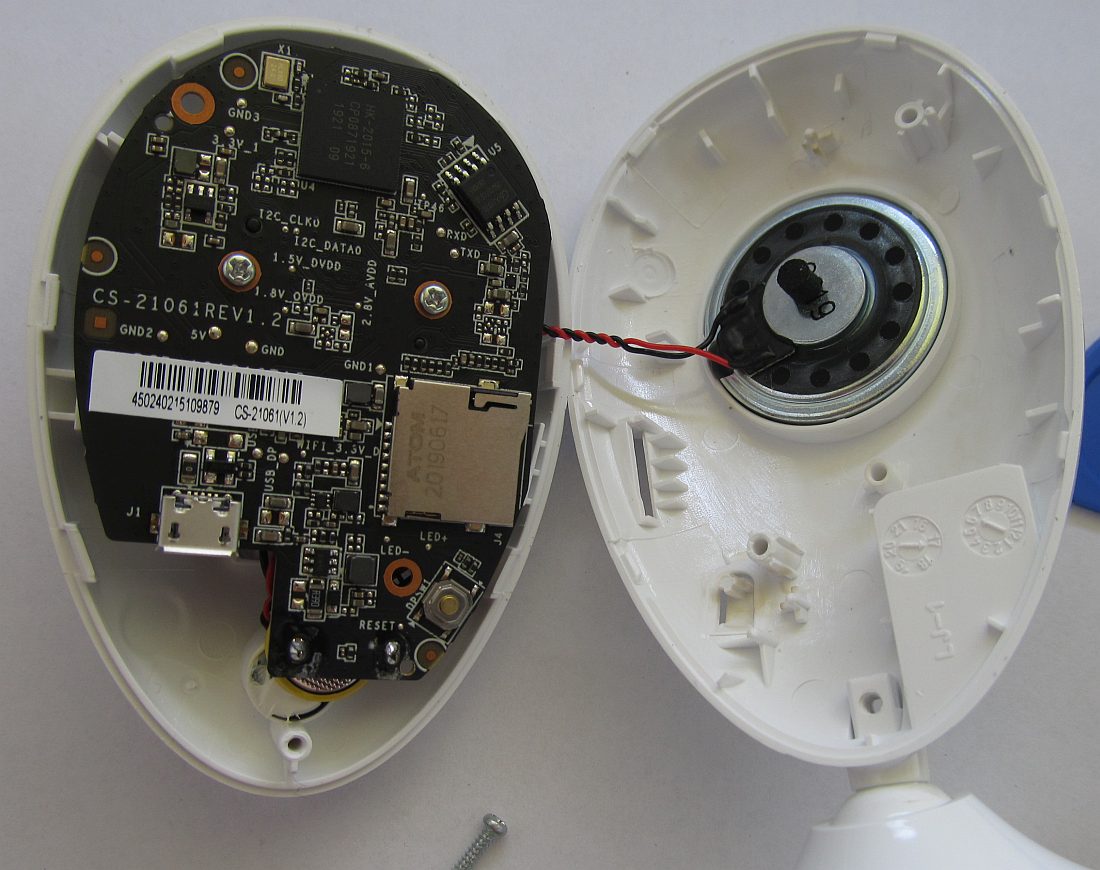

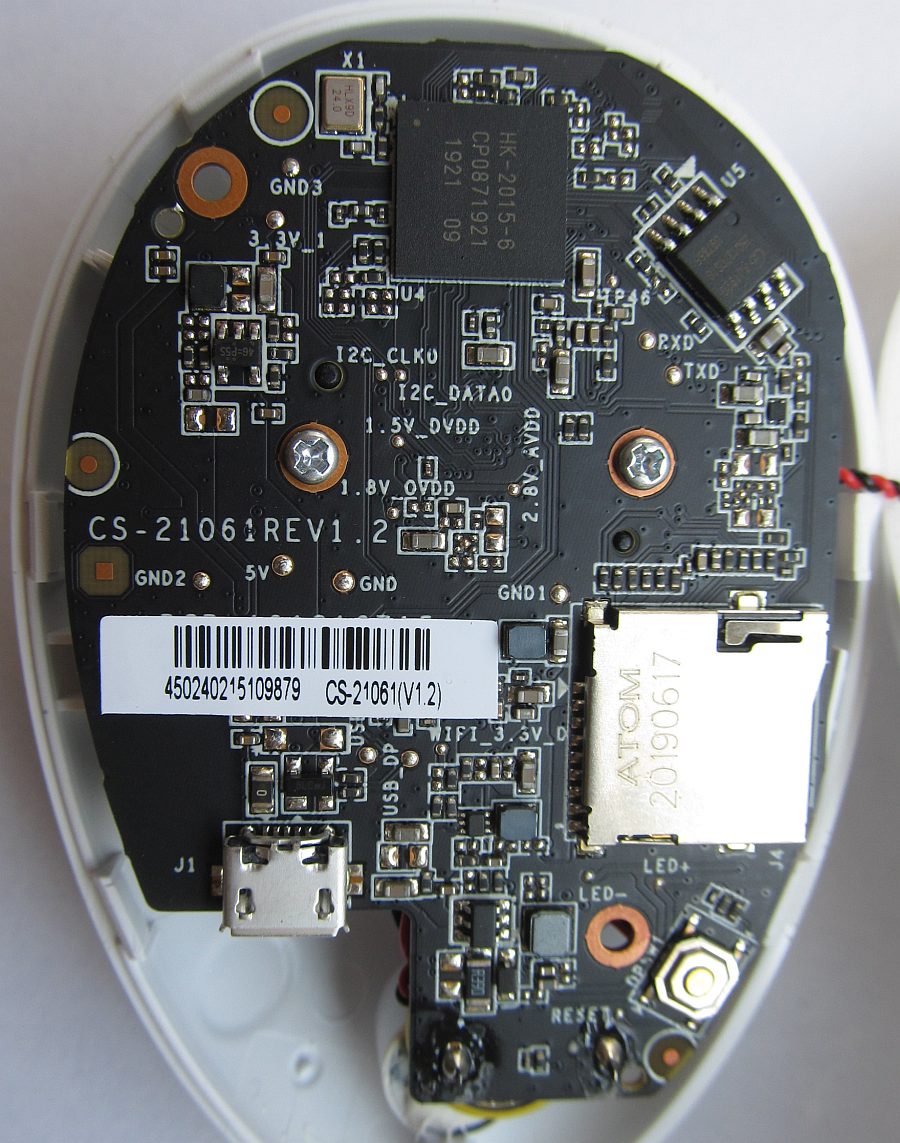

Full name: CS-21061 REV 1.2. Nicely marked test points on the PCB, including UART.
Ezviz CS-CV206 camera

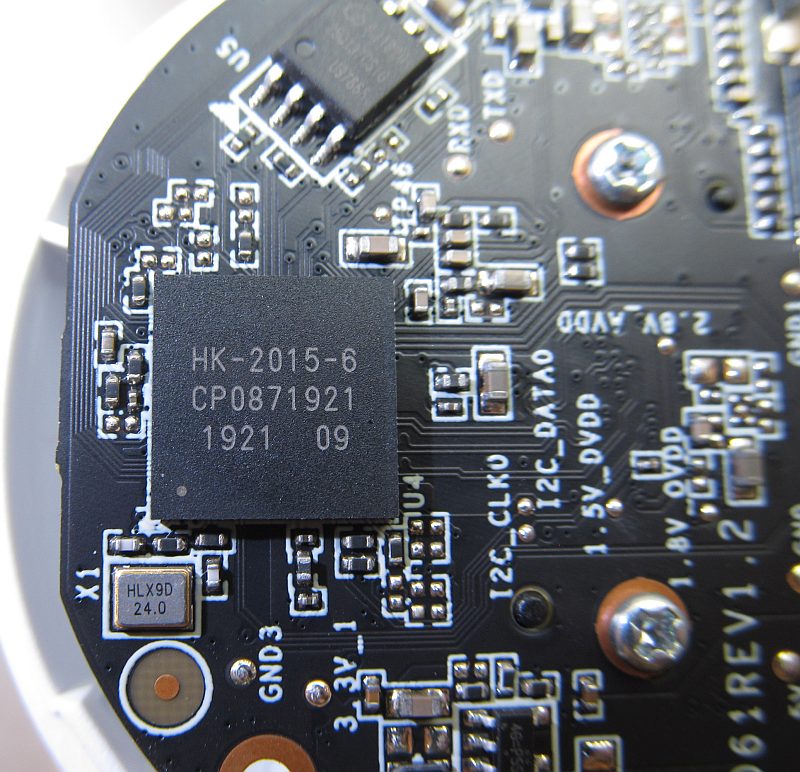

HK-2015-6 SoC, manufactured in 2019.
Ezviz CS-CV206 camera

dmesg output says that this is actually:

svn_ver: 71400 @ Linux version 3.4.35 (chenjie34@Cpl-Ezviz-General-14-172)
    (gcc version 4.8.3 20131202 (prerelease) (Hisilicon_v300) ) #1 Wed Jan 8 10:29:04 CST 2020
CPU: ARM926EJ-S [41069265] revision 5 (ARMv5TEJ), cr=00053177
CPU: VIVT data cache, VIVT instruction cache
Machine: hi3518ev200

WiFi:

wlan: version = SD8801-14.85.36.p104-C3X14C171-GPL-(FP85)-SVN@64969

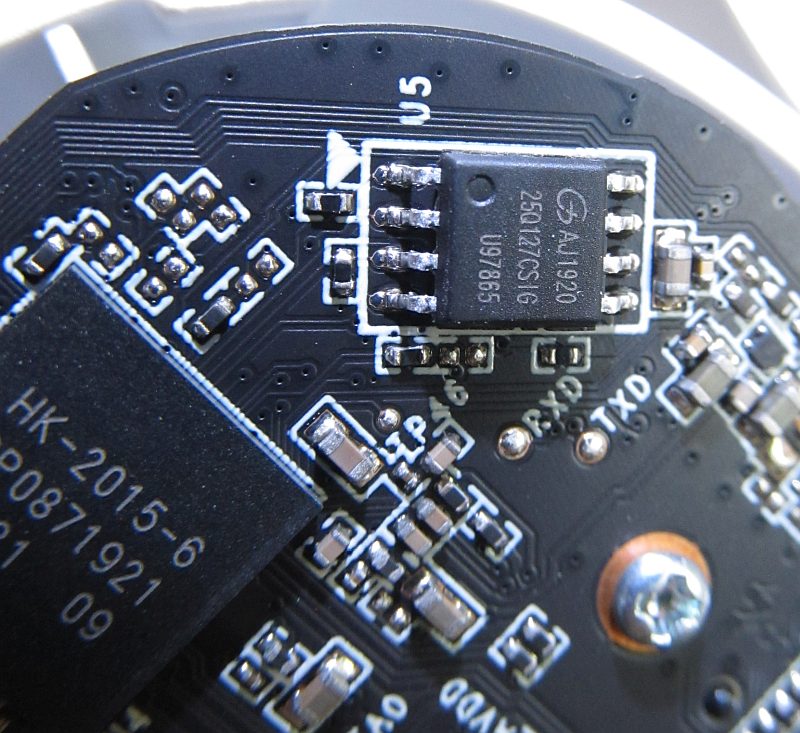

GD25Q127CSIG QSPI Flash (128 Mbit).
RXD and TXD test points.
Ezviz CS-CV206 camera

Ezviz CS-CV206 camera

I have not checked it, but I'd bet that J3 in top right corner is UART, same lines as marked on the other side.
Ezviz CS-CV206 camera

Ezviz CS-CV206 camera

Ezviz CS-CV206 camera

Ezviz CS-CV206 camera

Boot log.

After booting some custom shell (Busybox protected shell / psh) is open (help output).

Some interesting logs:

LIBSYS INFO: hwif_getsecinfo devModel [CS-CV206-C0-3B2WFR-Pro] , prodNo[D40029510]

Net share is running, ssid = EZVIZ_D40029510, key = EZVIZ_CMXOSA

Camera after reset was working as access point with network name and password listed in log.

dmesg output at startup

OpenIPC

Last time I've checked this particular model (or model sub-variant?) was not present on official OpenIPC support list. My semi-custom image is at https://github.com/tomek-o/EZVIZ-CS-CV206-OpenIPC. I've installed it using 3.3V UART interface connected to pads marked on the PCB, overwriting original firmware.
