miniscope v2 - detailed scheme description

This description is based on scheme from 2009.09.23. Currently (2010.04.22) this is the newest one, but keep in mind that scheme may be updated and this page will probably not follow if changes will not be significant.

Digital part

Digital part of scheme
USB_B_SOCKET
USB socket type B. You can use type A or mini/micro USB also.
LM1117T-3.3
3.3V voltage regulator. If you have some spare PCB space increasing C8 and C10 or adding additional capacitor for voltage filtering may be recommended. Do not increate C7 too much - you may have a problem with current spike when connecting device to USB port.
18.432 MHz crystal
Frequency is important - USB will not work with other crystal.
RESET switch
This switch is probably not necessary. It was supposed to enable to enter booloader (SAM-BA), but unplugging/plugging USB is easier.
BOOT switch
Use this to enter bootloader mode. AT91SAM7 device comes with bootloader code in internal ROM. If you want to use bootloader, bootloader code must be copied to internal FLASH memory. To do this you must unplug USB (or use RESET), push BOOT button, plug USB (or release RESET), wait 10 seconds and unplug USB again. At this moment previous FLASH content is overwritten with bootloader, bootloader is loaded and you can use SAM-BA to upload new program. This procedure is quite unconvenient if you are compiling and testing new firmware, but it is reliable and it doesn't require any additional hardware such as JTAG adapter.
AT91SAM7S64
This microcontroller has almost everything needed to develop simple oscilloscope: quite fast ADC, 16 kB RAM memory, 64 kB FLASH memory, USB device with PLL generator and some general purpose I/O pins. It's core needs 1.8V supply voltage, but it has internal voltage regulator so only single 3.3V external supply is needed.
C29 1 nF
Part of RC anti-aliasing and noise reducing filter.

Analog part

Analog power supply

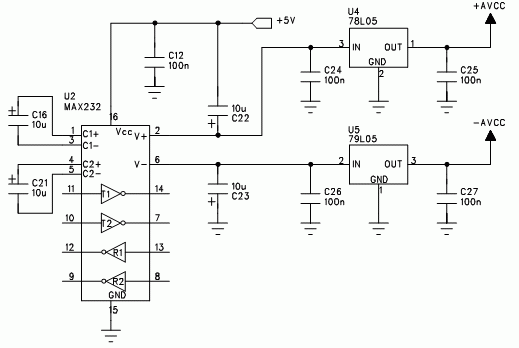

Power supply for analog part uses MAX232 (or similar) as cheap voltage converter. Analog circuits are powered with stabilized + 5V and - 5V voltages.

Analog input attenuator

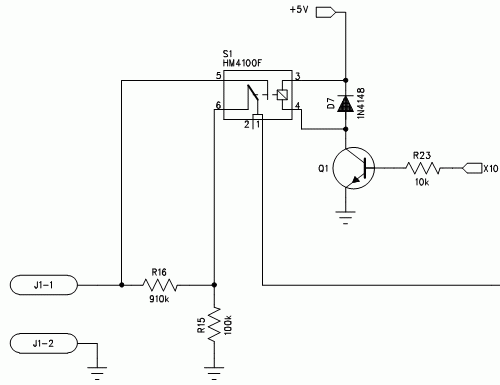

Input attenuator (1:10) allows to measure voltages higher than supply voltages of analog part - it uses electromechanical relay. Input impedance of oscilloscope is about 1 Mohm. You can use any popular npn transistor (i.e. BC237, BC547) to drive relay. Combined with 4066 switches it gives 6 sensitivy ranges.

Input voltage limiter

Two Schottky diodes limit voltages to not exceed other analog circuits safe input range. R14 is limiting current flowing through these diodes. R24, D8 and D9 function is similar - they limit ADC input voltage to 0...3.3V range.

AC DC switch

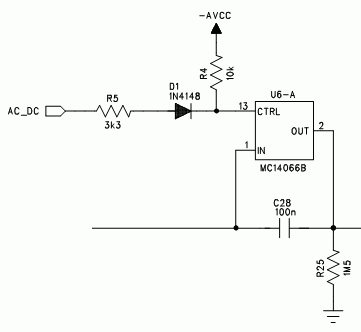

AC/DC switch allows to block DC signal part. 1/4 of 4066 device is used as analog switch.

Input buffer

U7-A works as input buffer / voltage follower with high input impedance and low output impedance. In my prototype this is half of TL082 operational amplifier, but many others dual amplifiers will fit too.

Analog amplifier

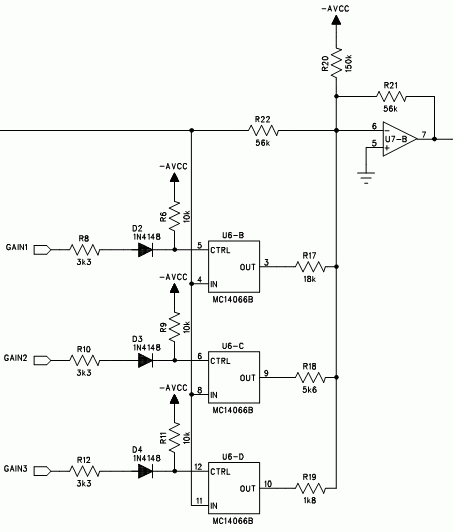

U7-B works as switchable gain amplifier and voltage shifter. In my prototype this is second half of TL082. This is inverting amplifier - device library (armscope.dll/armscope_dma.dll) is compensating this.
