Miracast HDMI adapter

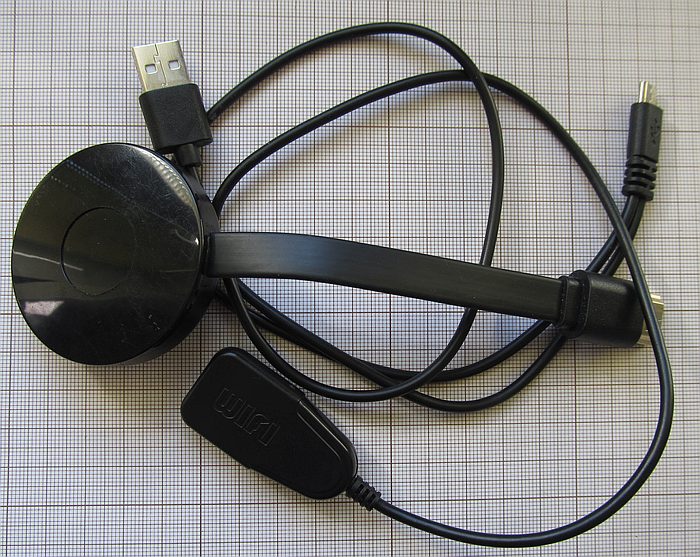

Cheap Miracast HDMI dongle powered from USB, branded as maxscreen.

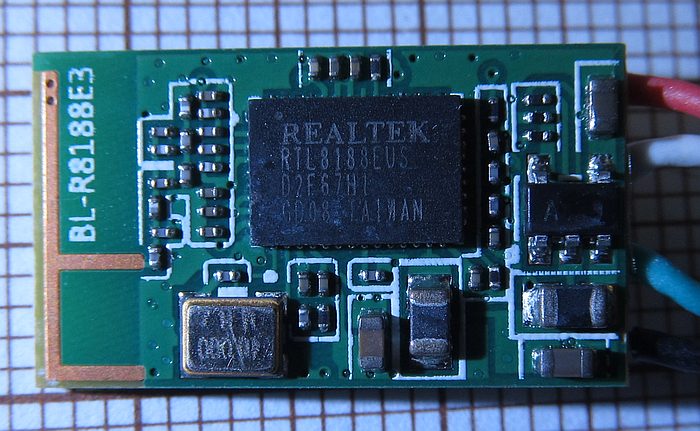

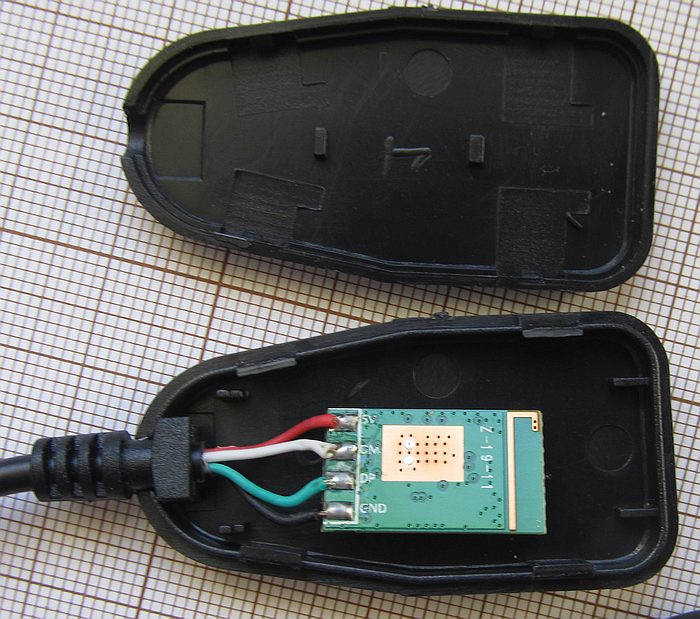

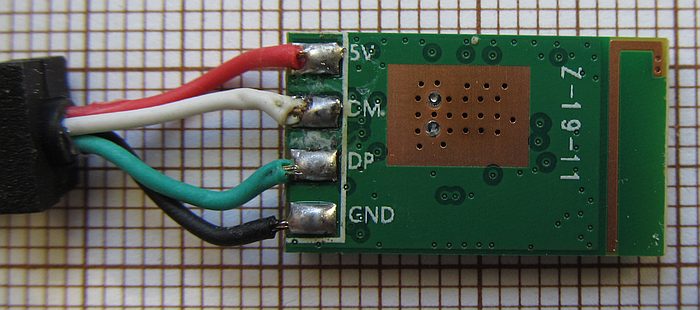

Using USB WiFi adapter based on RTL8188.

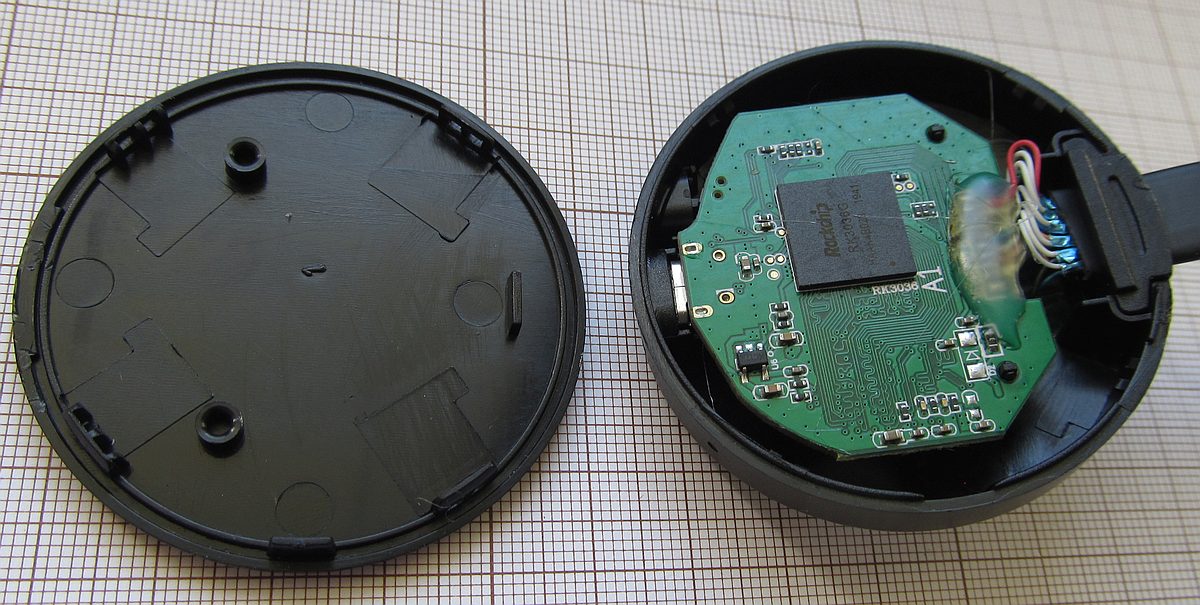

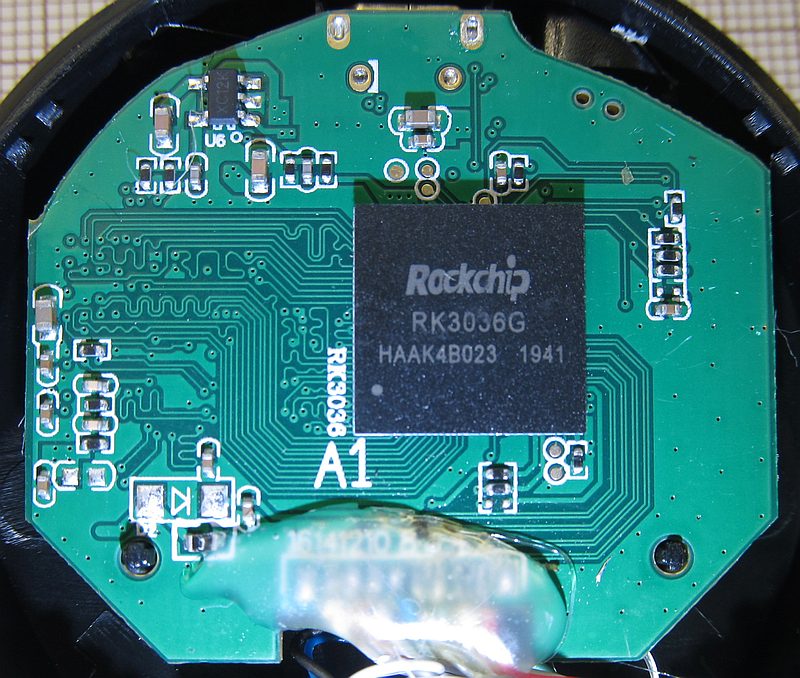

Rockchip RK3036 SoC. Dual-core Cortex-A7.

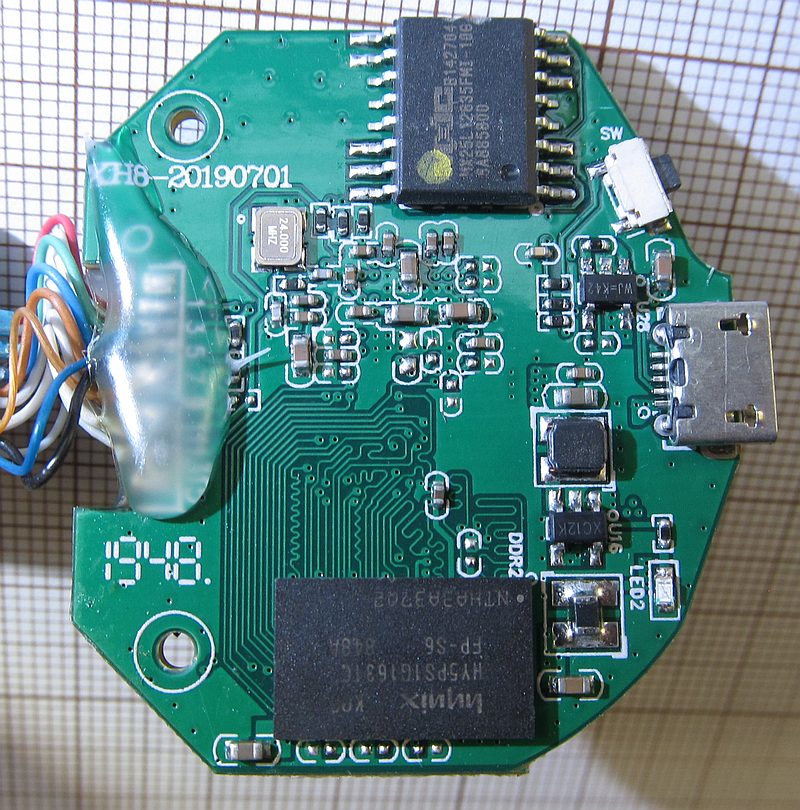

XH8-20190701

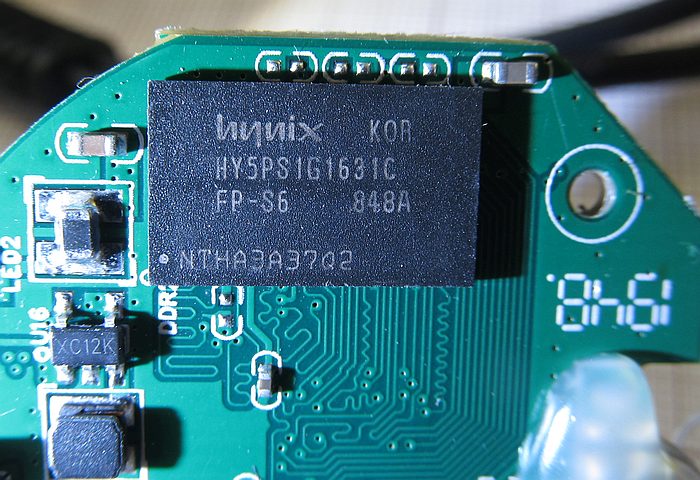

HY5PS1G1631C - 1Gbit DDR2 (WTF? RK3036 is supposed to work with DDR3/DDR3L).

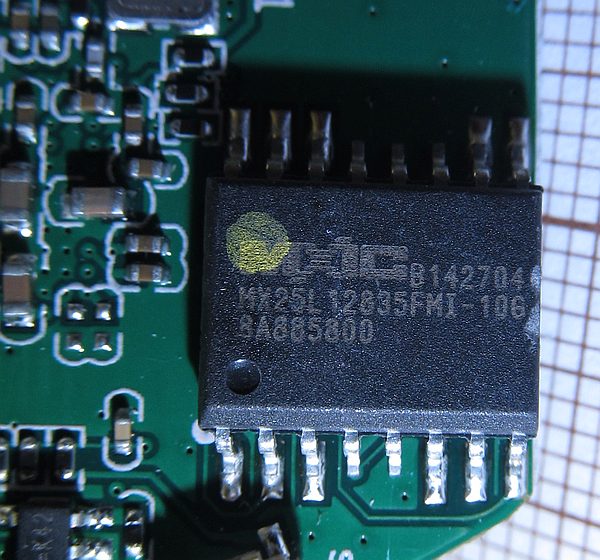

MX25L12835FMI - 128Mbit SPI NOR Flash.
At the moment this adapter is non-functional. It is displaying instruction screen through HDMI, but WiFi network that is supposed to be used for configuration (xhadapter-xxxxxx) is not starting. I was able to run it once after treating with hot air (~180 C), so I'm suspecting either Flash bit rot or some soldering issue.
Similar adapter: https://github.com/yuvadm/rockcast.
