Miniscope v2d - example traces

Few examples of traces both generated and captured with miniscope v2d (generator output connected back to oscilloscope input).
All of these traces were generated with 400kHz DAC feeding frequency (that is example 10kHz traces consist of 40 samples per period) using standard shape generator (that is not hand-drawn like on video) with 2Vpp span and 1.65V offset.

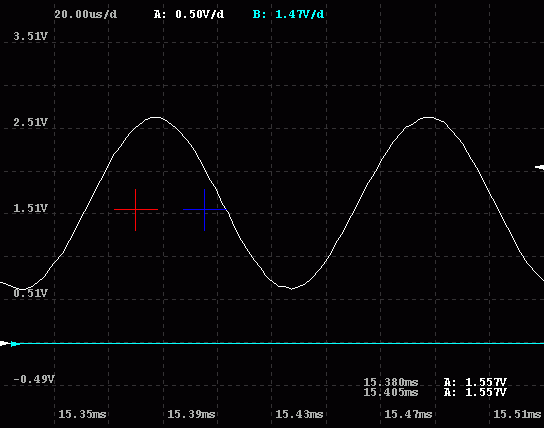

10 kHz sinus 10kHz sinus

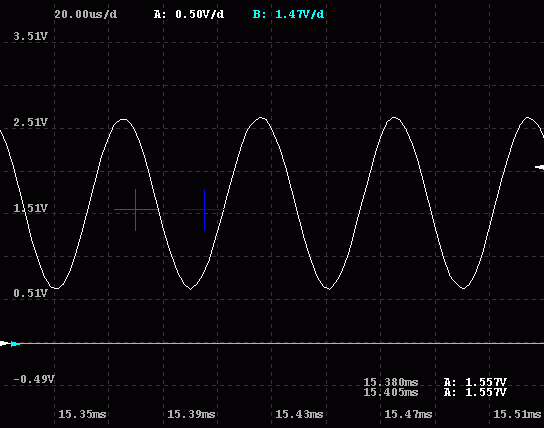

20 kHz sinus 20kHz sinus

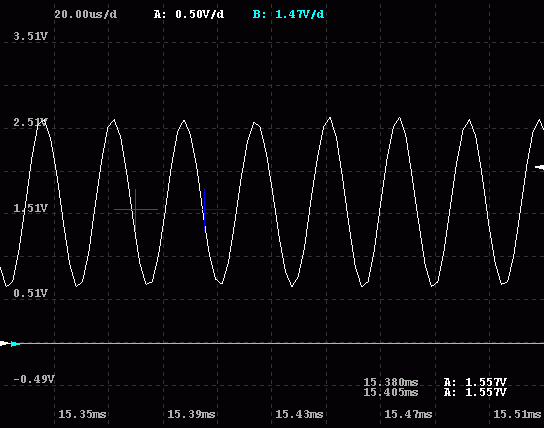

40 kHz sinus 40kHz sinus

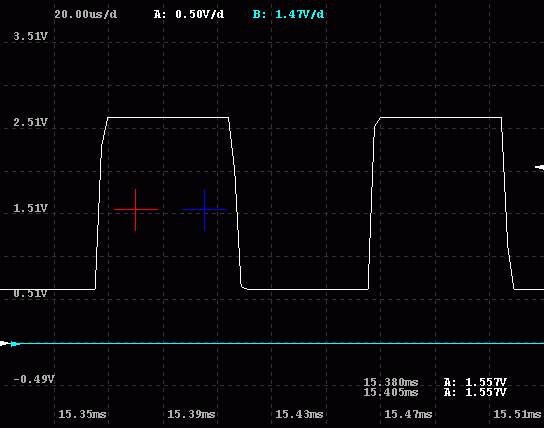

10 kHz square 10kHz square

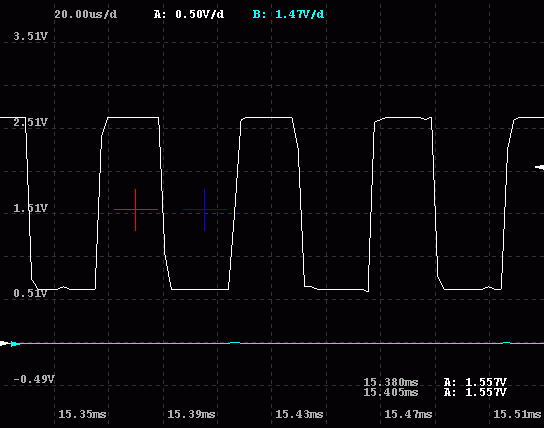

20 kHz square 20kHz square

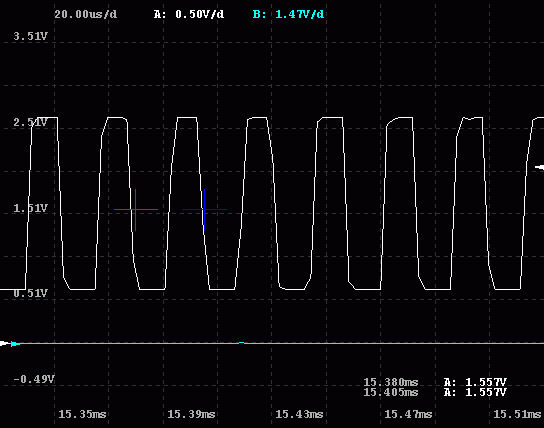

40 kHz square 40kHz square

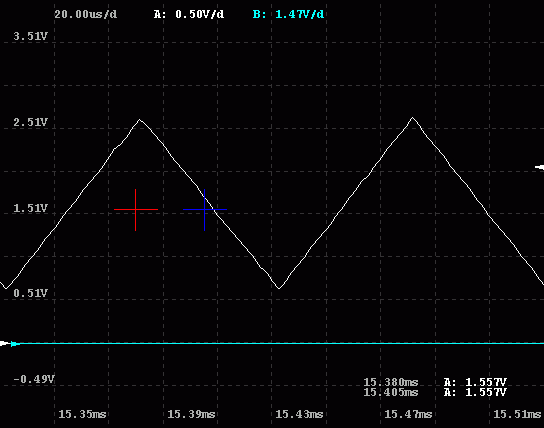

10 kHz triangle 10kHz triangle

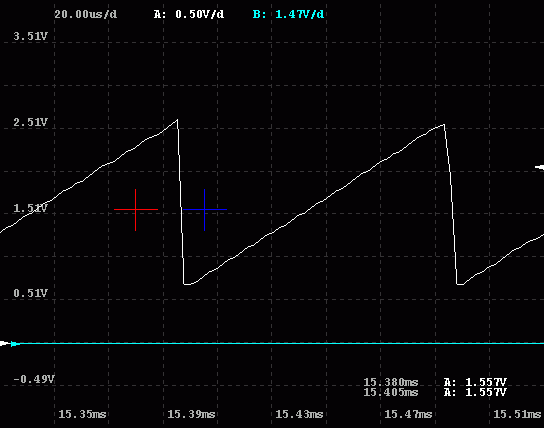

10 kHz sawtooth 10kHz sawtooth
